一体式超高强度拉钉，可应用于各种重型结构，坚固耐用，拥有绝佳抗震性与拉伸性能，且安装简易快速，无须经特殊培训即可操作，搭配特殊机械锁定设计，可以免去定期拧紧维护时间。
安装时间
1 秒
剪切力
45,000 磅
抗拉力
29,100 磅
快速安装
PADOM 安装步骤简易快速，只需数秒即可完成，操作人员无需另外接受特殊培训。

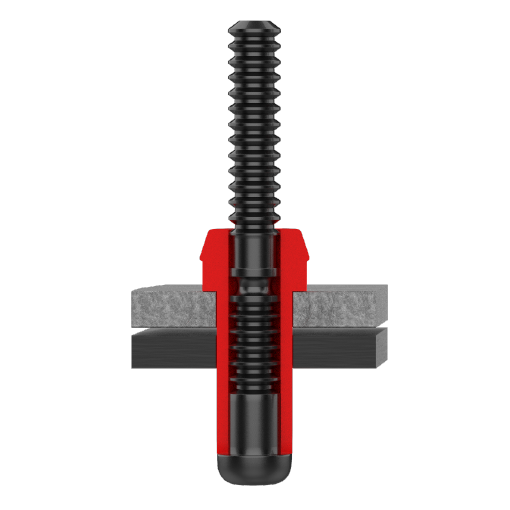

将拉钉放入预留孔，再将套环套入拉钉尾部。
01

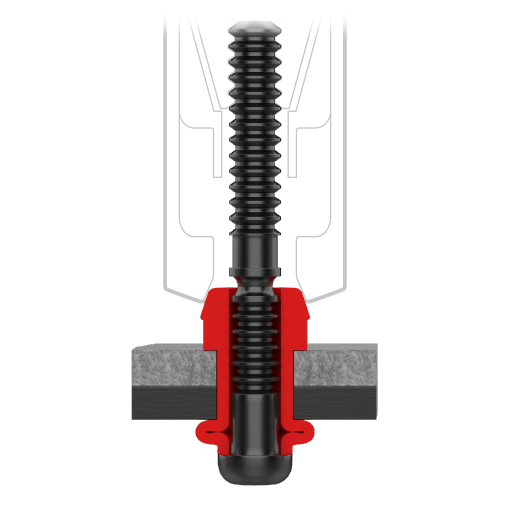

启动拉钉枪，使盲端一侧开始变形。
02

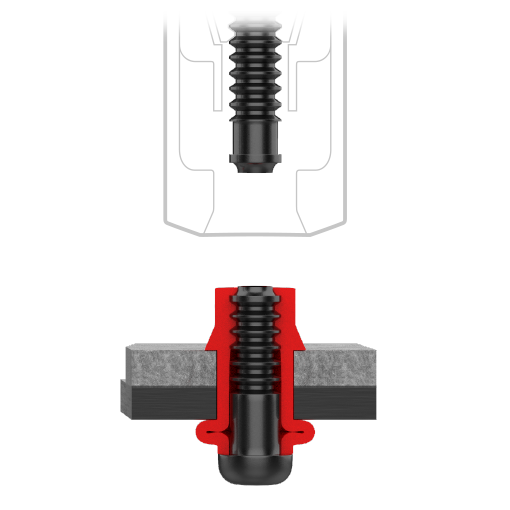

连接处锁紧，形成内锁环。
03

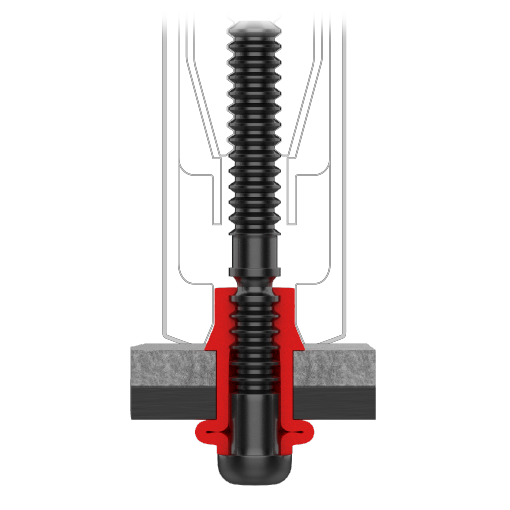

断开拉钉尾部，即可完成安装。
04
应用
超高强度铆接，提供最安全可靠紧固效果。
- 军用设备
- 矿用设备
- 太阳能电池板中零组件
- 农业设备
- 汽车悬架
- 轨道车装配
- 游乐设施
坚固、安全、易安装，提供超高强度专业紧固。
超高强度拉钉 PADOM
拉钉
Uploaded 07/07/2023
|
PATTA Marketing
一体式超高强度拉钉，可应用于各种重型结构，坚固耐用，拥有绝佳抗震性与拉伸性能，且安装简易快速，无须经特殊培训即可操作，搭配特殊机械锁定设计，可以免去定期拧紧维护时间。
技术规格
镀锌低碳钢本体+防锈中碳钢心轴

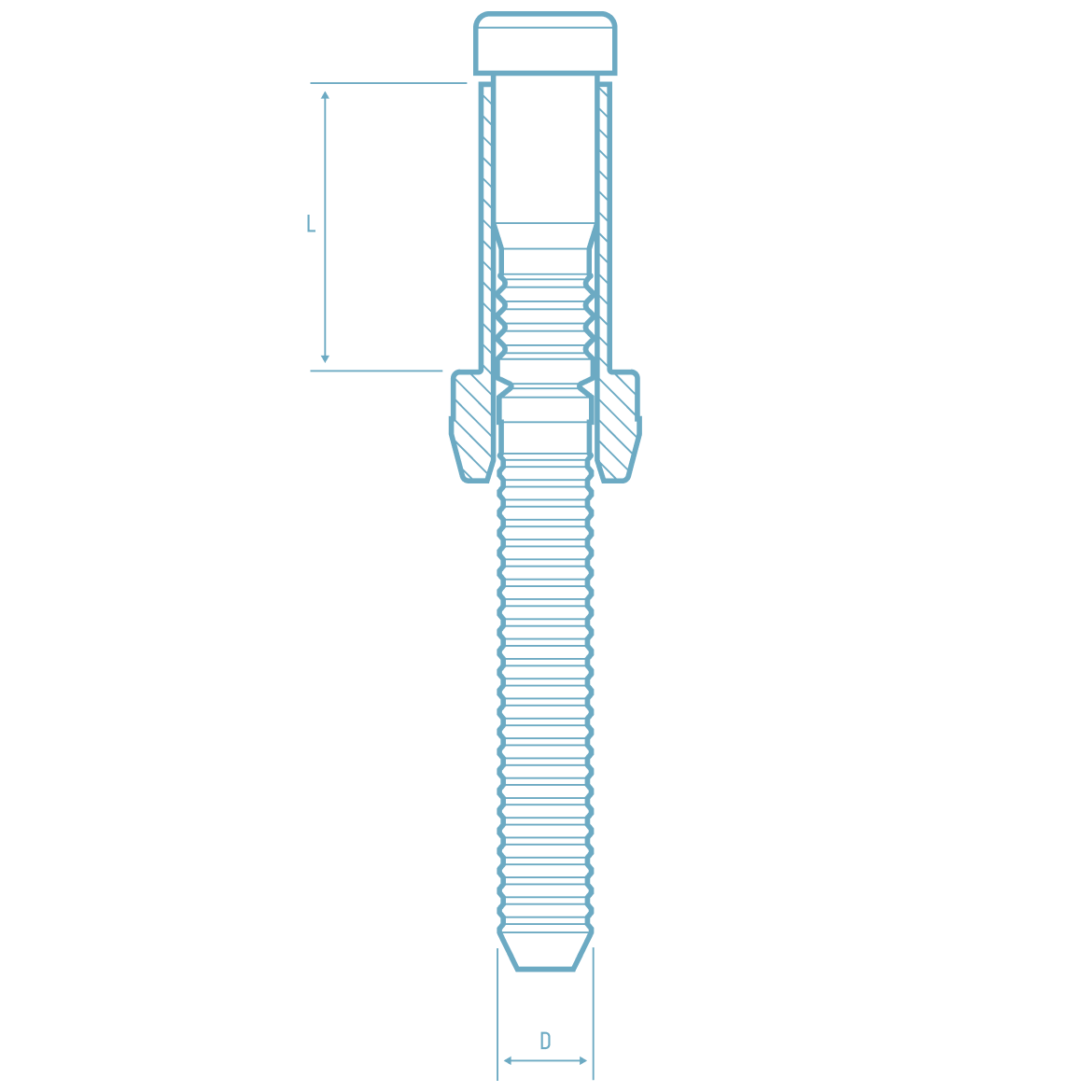

PADOM 可用尺寸
| 直径 (D) | 铆接厚度 | 剪切力 | 抗拉力 |
|---|---|---|---|
| 8.0 Ø 8.8~9.3 | 4.8 - 7.9 | 35,808N (8,050lbs) | 23,131N (5,200lbs) |
| 6.4 - 9.5 | 35,808N (8,050lbs) | 23,131N (5,200lbs) | |
| 8.0 - 11.1 | 35,808N (8,050lbs) | 23,131N (5,200lbs) | |
| 11.1 - 14.3 | 35,808N (8,050lbs) | 23,131N (5,200lbs) | |
| 14.3 - 17.5 | 35,808N (8,050lbs) | 23,131N (5,200lbs) | |
| 17.5 - 20.6 | 35,808N (8,050lbs) | 23,131N (5,200lbs) | |
| 20.6 - 23.8 | 35,808N (8,050lbs) | 23,131N (5,200lbs) | |
| 23.8 - 27.0 | 35,808N (8,050lbs) | 23,131N (5,200lbs) | |
| 9.6 Ø 10.5~11.0 | 4.8 - 7.9 | 49,375N (11,100lbs) | 32,250N (7,250lbs) |
| 8.0 - 11.1 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 11.1 - 14.3 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 14.3 - 17.5 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 17.5 - 20.6 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 20.6 - 23.8 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 23.8 - 27.0 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 27.0 - 30.1 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 30.2 - 33.3 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 12.7 Ø 13.9~14.8 | 6.4 - 9.5 | 89,632N (20,150lbs) | 57,827N (13,000lbs) |
| 9.5 - 12.7 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 12.7 - 15.9 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 15.9 - 19.1 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 19.1 - 22.2 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 22.2 - 25.4 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 25.4 - 28.6 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 28.6 - 31.8 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 31.8 - 34.9 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 35.0 - 38.1 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 38.1 - 41.3 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 16.0 Ø 17.4~18.5 | 6.4 - 12.7 | 126,774N (28,500lbs) | 91,189N (20,500lbs) |
| 12.7 - 19.1 | 126,774N (28,500lbs) | 91,189N (20,500lbs) | |
| 19.1 - 25.4 | 126,774N (28,500lbs) | 91,189N (20,500lbs) | |
| 25.4 - 31.8 | 126,774N (28,500lbs) | 91,189N (20,500lbs) | |
| 31.8 - 38.1 | 126,774N (28,500lbs) | 91,189N (20,500lbs) | |
| 19.0 Ø 21.0~22.2 | 6.4 - 12.7 | 200,615N (45,100lbs) | 129,443N (29,100lbs) |
| 12.7 - 19.1 | 200,615N (45,100lbs) | 129,443N (29,100lbs) | |
| 19.1 - 25.4 | 200,615N (45,100lbs) | 129,443N (29,100lbs) | |
| 25.4 - 31.8 | 200,615N (45,100lbs) | 129,443N (29,100lbs) | |
| 31.8 - 38.1 | 200,615N (45,100lbs) | 129,443N (29,100lbs) | |
| 38.1 - 44.5 | 200,615N (45,100lbs) | 129,443N (29,100lbs) |
| 直径 (D) | 铆接厚度 | 剪切力 | 抗拉力 |
|---|---|---|---|
| 5/16 Ø 0.37 | 0.20 - 0.31 | 35,808N (8,050lbs) | 23,131N (5,200lbs) |
| 0.26 - 0.37 | 35,808N (8,050lbs) | 23,131N (5,200lbs) | |
| 0.31 - 0.43 | 35,808N (8,050lbs) | 23,131N (5,200lbs) | |
| 0.43 - 0.55 | 35,808N (8,050lbs) | 23,131N (5,200lbs) | |
| 0.55 - 0.69 | 35,808N (8,050lbs) | 23,131N (5,200lbs) | |
| 0.69 - 0.81 | 35,808N (8,050lbs) | 23,131N (5,200lbs) | |
| 0.81 - 0.94 | 35,808N (8,050lbs) | 23,131N (5,200lbs) | |
| 0.94 - 1.59 | 35,808N (8,050lbs) | 23,131N (5,200lbs) | |
| 3/8 Ø 0.43 | 0.20 - 0.31 | 49,375N (11,100lbs) | 32,250N (7,250lbs) |
| 0.31 - 0.43 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 0.43 - 0.55 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 0.55 - 0.69 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 0.69 - 0.81 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 0.81 - 0.94 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 0.94 - 1.59 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 1.06 - 1.18 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 1.18 - 1.32 | 49,375N (11,100lbs) | 32,250N (7,250lbs) | |
| 1/2 Ø 0.58 | 0.26 - 0.37 | 89,632N (20,150lbs) | 57,827N (13,000lbs) |
| 0.37 - 0.49 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 0.49 - 0.63 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 0.63 - 0.75 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 0.75 - 0.87 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 0.87 - 1.00 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 1.00 - 1.12 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 1.12 - 1.26 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 1.26 - 1.38 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 1.38 - 1.50 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 1.50 - 1.63 | 89,632N (20,150lbs) | 57,827N (13,000lbs) | |
| 5/8 Ø 0.73 | 0.26 - 0.51 | 126,774N (28,500lbs) | 91,189N (20,500lbs) |
| 0.51 - 0.75 | 126,774N (28,500lbs) | 91,189N (20,500lbs) | |
| 0.75 - 1.00 | 126,774N (28,500lbs) | 91,189N (20,500lbs) | |
| 1.00 - 1.26 | 126,774N (28,500lbs) | 91,189N (20,500lbs) | |
| 1.26 - 1.50 | 126,774N (28,500lbs) | 91,189N (20,500lbs) | |
| 3/4 Ø 0.87 | 0.26 - 0.51 | 200,615N (45,100lbs) | 129,443N (29,100lbs) |
| 0.51 - 0.75 | 200,615N (45,100lbs) | 129,443N (29,100lbs) | |
| 0.75 - 1.00 | 200,615N (45,100lbs) | 129,443N (29,100lbs) | |
| 1.00 - 1.26 | 200,615N (45,100lbs) | 129,443N (29,100lbs) | |
| 1.26 - 1.50 | 200,615N (45,100lbs) | 129,443N (29,100lbs) | |
| 1.50 - 1.75 | 200,615N (45,100lbs) | 129,443N (29,100lbs) |
